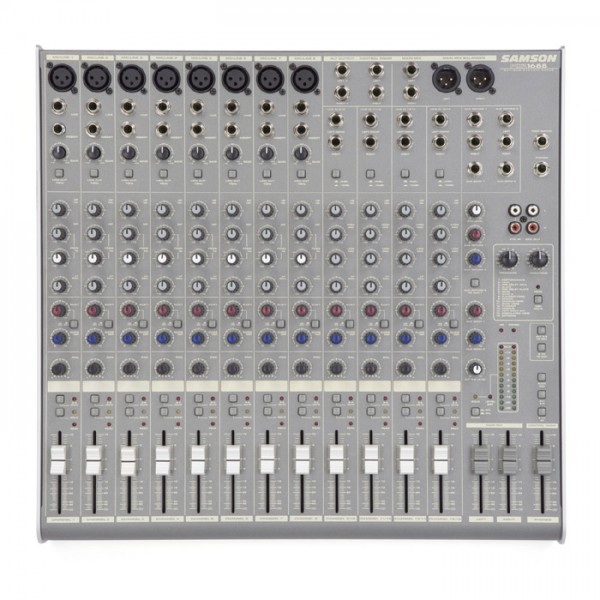

MDR1688/MDR-1688/SAMSON

제조사 SAMSON

제품특성

MDR시리즈는 홈스튜디오나 라이브 음향 시스템을 구성할 때 완벽한 오디오 환경 구축을 위한 모든 기능을 가지고 있습니다.

SAMSON의 신제품 MDR믹서는 홈스튜디오와 라이브 시스템에 필요한 모든 특징을 갖고 있습니다.

SAMSON의 모든 MDR시리즈 믹서처럼, MDR1248, 1688은 모든 회로 구성에 부품 선택과

디자인에 신중함을 더하여, 향상된 다이나믹 레인지와 투명한 오디오 신호를 여러분께 제공합니다.

- 16 Inputs: 8 mic/line plus 4 stereo line

- 24-bit Digital Effects Processor with 256 Presets

- 3-band EQ with sweepable mids on mic/line inputs

- 4-band EQ on stereo channels

- 60mm faders

- 19 랙 장착 킷 포함

제품스펙

Mono input channels

- Microphone input electronically balanced, discrete input configuration

- Frequency response: 10Hz to 45kHz

- Distortion (THD & N): 0.005% at 4dBu, 1kHz

- Gain range: 0dB to +40dB (MIC)

- SNR (Signal to Noise Ratio): 105dB

- Line input electronically balanced

- Frequency response: 10Hz to 45kHz

- Distortion (THD & N): 0.005% at 4dBu, 1kHz

- Sensitivity range: -10dBu to +30dBu

Stereo input Channels

- Line input Balanced

- Frequency response: 10Hz to 45kHz

- Distortion (THD & N): 0.005% at +4dBu, 1kHz

Impedances

- Microphone input: 3k Ohm

- Channel Insert return: 2.5k Ohm

- All other inputs: 14.8k Ohm or greater

- Tape out: 1k Ohm

- All other output: 120 Ohm

Equalization

- Mono Channels

- Hi shelving: +/- 15dB @ 12kHz

- Swept Mid bell: +/- 15dB @ 100 to 5kHz

- Low shelving: +/- 15dB @ 80Hz

- Low Cut filter: 75Hz, 18dB/oct.

- Stereo Channels

- Hi shelving: +/- 15dB @12kHz

- High Mid bell: +/- 15dB @ 3kHz

- Low Mid bell: +/- 15dB @ 500Hz

- Low shelving: +/- 15dB @80Hz

Main Mix Section

- Noise (Bus noise) Levels full down: -100dBr (ref.:+4dBu)

- Level set to 0 dB: -90dBr (ref.:+4dBu)

- Max output: +28dBu balanced XLR,

- +22dBu impedance balanced, 1/4 jacks

3/4 Output Section

- Noise (Bus noise) Levels full down: -100dBr (ref.:+4dBu)

- Level set to 0 dB - 90dBr (ref.:+4dBu)

- Max output: +22dBu impedance balanced, 1/4 jacks

Control Room Output Section

- Noise (Bus noise) Levels full down: -100dBr (ref.:+4dBu)

- Level set to 0 dB - 90dBr (ref.:+4dBu)

- Max output: +22dBu impedance balanced, 1/4 jacks

Aux Section

- AUX Return gain range: -∞ to +15dB

- AUX Sends max out: +22dBu

Physical

- Weight Net: 5.85kg

- Dimension (W x D x H): (405mm x 425mm x 65mm)
