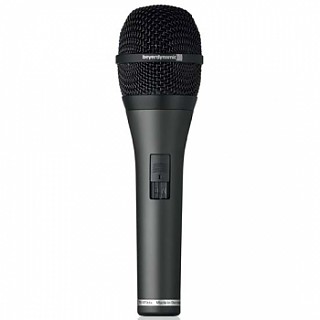

TGV70DS/TGV-70DS/BEYER DYNAMIC

• Hypercardioid polar pattern• High gain before feedback

• Rugged construction to withstand touring damage

• Shock mounted microphone capsule

• TG V70d s version with on/off switch

• Supplied with microphone clamp and storage bag

APPLICATIONS

The dynamic TG V70d live vocal microphone with a hypercardioid

polar pattern is sure to impress both on the stage and behind the

mixing console – for the singer, the audience and the rental

company. The reasons: the powerful, extremely detailed sound, the

excellent feedback rejection and a marked proximity effect with

reinforced bass to support less powerful voices. Even without help

from the tone control of the mixing console, it delivers an

impressively rounded and exceptionally powerful sound. Additional

to its great looks, its handling and well-thought-out housing

construction with a progressively damped capsule suspension for

low handling noises will make it the standard for stage professionals.

Available with or without switch.

TECHNICAL SPECIFICATIONS

Transducer type . . . . . . . . . . . . . Dynamic

Operating principle . . . . . . . . . . Pressure gradient

Polar pattern . . . . . . . . . . . . . . . Hypercardioid

Frequency response

Close miking . . . . . . . . . . . . . . . 25 - 18,000 Hz

Distant miking

(measured at 1 m) . . . . . . . . . . . 90 - 16,000 Hz

Rear attenuation at 1 kHz . . . . . > 25 dB at 110°

Open circuit voltage. . . . . . . . . . 3.2 mV/Pa (-50 dBV) ±2.5 dB

Magnetic field suppression. . . . . > 20 dB at 50 Hz

Nominal impedance . . . . . . . . . . 280 Ω

Load impedance . . . . . . . . . . . . ≥ 1 kΩ

Connection . . . . . . . . . . . . . . . . 3-pin XLR, male

Dimensions

Length . . . . . . . . . . . . . . . . . . . . 185 mm

Shaft diameter . . . . . . . . . . . . . . 23/35 mm

Head diameter . . . . . . . . . . . . . . 54 mm

Weight (without cable) . . . . . . . 345 g
